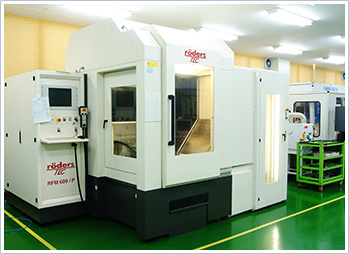

High-Speed Cutting Machine
Process the reflector on a high-speed CNC milling machine (faster than 20,000 rpm) and satisfy the surface reliability by comparatively verifying 3D data, and finally conducting the 3D measurement.

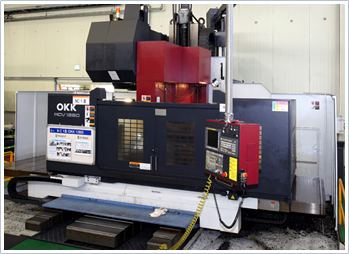

NC12 Machine
- the NC processing machine to meet the needs for mold making and complicated structures.
- Manufacturer: Japanese firm OKK
- Maximum processing scope: 2140 * 1260 * 900 mm
- Maximum processing weight: 8,000 kg
- Maximum processing spindle: 12,000 rpm

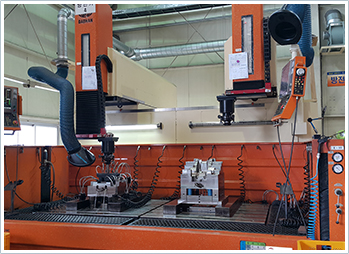

Double-head Discharger
This machine was introduced in order to reduce the production time and improve product quality by securing our own capability of discharge processing for which we depended partially on other companies.
Design Software
| No. | NAME | MODEL | MAKER | Qty |
|---|---|---|---|---|
| 1 | MOLD DESIGN | AutoCAD, CADKEY | 6 | |
| 2 | PROGRAM | CATIA | DS | 4 |
| 3 | PROGRAM | CIMATRON | CIMATRON | 5 |
| 4 | PROGRAM | UG | UGS | 1 |
| 5 | Moldflow (Computer Aided Engineering) | Premium | Autodesk | 1 |
| 6 | AnyCasting (Computer Aided Engineering) | v.6.0 | AnyCasting | 1 |
Mold Manufacturing
| No. | NAME | MODEL | MAKER | Qty |
|---|---|---|---|---|
| 1 | CNC MACHINING MACHINE | OKK-1260, OKK-VM 7 III | OKK | 2 |
| 2 | CNC MACHINING MACHINE | VX950, KV90, KV75 | WIA | 3 |
| 3 | CNC E/D MACHINE 2 Head | 2000 CNC | DAEHAN EDM | 2 |
| 4 | MILL'G MACHINE 5 | MASTER6U, NSM-T | NAMSUN | 2 |
| 5 | MILL'G MACHINE 2 | VHR-G(3852) | SHIZUOKA | 3 |
| 6 | LATHE OPERATOR | NARA4311 | NAMSUN | 1 |
| 7 | RADIAL | PRD1500 | CHANGJO | 1 |
| 8 | POLISHER | SFG-200MB(9110932) | SAMSUNG | 2 |
| 9 | Oil Pressure Type Injection Machine | 1,350, 650, 350, 150 | HYUNDAI | 3 |
| 10 | DIE SPOT MACHINE | KSRP 200 | KUKDONG | 1 |
